Rh510 High Penetration Down The Hole Hammer For Down The Hole Drilling

ROSCHEN GROUP
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

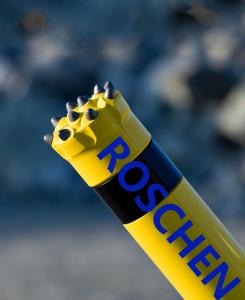

Rh510 High Penetration Down The Hole Hammer For Down The Hole Drilling

  • 1
  • 2
  • 3

Brand Name : ROSCHEN

Model Number : ROS 52 ROS 54

Certification : ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiate

Supply Ability : 100000 set

Packaging Details : Poly wooden box

Name : down the hole hammer

DTH Drilling : down the hole hammer drilling

DTH drill rig : down the hole hammer drilling rig

DTH Bit : down the hole hammer bit

Use : Down-the-hole drill

Using : Down the Hole (DTH) Hammer Bits

Hammer factory : Down the Hole Hammers supplier

size : 5" Down the Hole Hammers

Hot sale hammer : Down the Hole Hammers factory

Application : Down the Hole (DTH) Hammer Bits

Contact Now

RH510 DOWN-THE-HOLE HAMMER HIGH PENETRATION FOR DOWN THE HOLE DRILLING


RH510 DOWN-THE-HOLE HAMMER


Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground.

Roschen RH510 is a down-the-hole (DTH) hammer engineered for high penetration rates and maximum productivity. This hammer for high performance is the first choice for drilling hard and abrasive rocks. It features a patented shank design for optimized energy efficiency, and no foot valve. Models with heavy-duty or reversible casings are available to ensure maximal life in highspeed drilling applications in abrasive rock formations.

This is achieved through a proprietary interface between the piston and bit. This optimizes impact energy transmission to boost penetration rates. The result will deliver excellent economy through high productivity. It is designed for operating pressures up to 24 bar (350 psig) .

The RH510 hammer does not require a foot valve in the bit further lowering the chance for down time. The unique design maximizes energy efficiency along with fuel savings and minimizes total drilling costs.


Hammer Weight kg (lb) Outside diameter mm (in.) Hammer length mm (in.)
RH510r 3" 25 (55) 81.3 (3.2) 823 (32.4)
RH510r 4" 38 (83) 98 (3.56) 914 (36)
RH510 5" 68 (145) 120 (4.72) 987 (38.86)
RH510g 5" 73 (160) 126 (4.96) 987 (38.86)
RH510r 5" 73 (160) 126 (4.96) 987 (38.86)
RH510 6" 72 (158) 142 (5.6) 922 (36.3)
RH510g 6" 82 (180) 150 (5.9) 922 (36.3)
RH510r 6" 82 (180) 150 (5.9) 922 (36.3)
RH510w 6" 72 (158) 142 (5.6) 922 (36.3)
RH510r 8" 173 (380) 181 (7.12) 1,219 (48)
RH510w 8" 173 (380) 181 (7.12) 1,270 (50)


ROSCHEN DTH Hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
1" BR1 ROS 11 RD50 box ¢50-70mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
2" BR2 ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52 ROS 54 API 2 3/8" Reg /API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
M80/M85
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes:
Metzke, Remet thread is available!
Any special typ shank of DTH Hammer will be available by requests.
