DTH Casing Advancer PHD Rod Box Connection With Tricone Roller Drill Bits

Name: DTH Casing Advancer PHD Rod Box Connection With Tricone Roller Drill Bits
Brand: ROSCHEN
Price: 1 USD

China DTH Casing Advancer PHD Rod Box Connection With Tricone Roller Drill Bits wholesale

Brand Name : ROSCHEN

Model Number : BQ NQ HQ PQ

Certification : ISO

Place of Origin : USA, CHINA

MOQ : Negotiable

Price : Negotiate

Supply Ability : 1000 sets

Packaging Details : Poly wood box

Name : Casing Advancer Systems

Material : High Manganese Steel

Type : Casing

Use : Well Drilling

Machine type : Drilling Tool

Processing type : Forging

Contact Now

DTH Casing Advancer PHD Rod Box Connection With Tricone Roller Drill Bits

Helps reduce drilling cost by saving rod and casing handling.

Can be used with Rock Bot or TC. Drag Bit.

Long Casing Shoe life as it is always reaming and never drilling alone.

Special flushing ports in the body ensure that the casing bit is adequately flushed.

Uses conventional Right Hand threaded Drill Rods and Casing.

Suitable for Air, Water or Mud Flush.

Manufactured from high quality materials.

Casing Advancer - Technical Specifications

Casing Advancer / Wireline Casing Advancer
Specifications
BQ	AW/AWL
HQ	BW/NWL
NQ	NW/HWL
PQ	HW/HWT
BW	PW/PWT
HWT	SW/SWT
NW	UW/UWT
PWT	ZW/ZWT

Conventional Casing to ISO Standard 3551
Designation	Casing O.D.	Casing I.D.	Advancer Bit O.D.
SW.	6.625"	6.000"	7.800"
UW.	7.625"	7.000"	8.800"
ZW.	8.625"	8.000"	9.800"

Waterwell Casing to BS 879 ( Flush Butt Joints )
Designation	Casing O.D.	Casing I.D.	Advancer Bit O.D.
6”NB.	6.625"	6.000"	7.800"
8”NB.	8.625"	8.000"	8.800"
10”NB.	10.750"	10.000"	11.93"

Key:

1. Standard Casing
2. Rod Entry Guide Sub
3. Body
4. Hi-tensile Drive Pin
5. Seal
6. Advancer Casing Shoe
7. Bit

Casing Advancer Bit and Drill Rod Threads. 2 3/8, 2 7/8, 3 1/2 API. REG.

Other Rod threads maybe incorporated at customers special request.

Casing Advancer to suit Metric Casing (Larger sizes) are also available by request.

Roschen Inc. is constantly striving to improve its products and must therefore, reserve the right to change designs, materials, specifications and price without notice.

DTH Casing Advancer PHD Rod Box Connection With Tricone Roller Drill Bits

Product Tags:

rock drilling tools

casing advance drilling

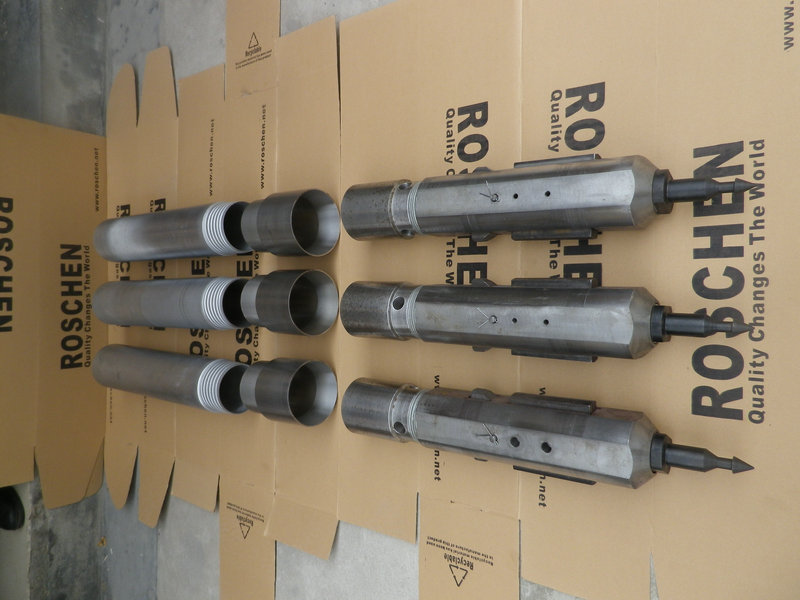

DTH Casing Advancer PHD Rod Box Connection With Tricone Roller Drill Bits Images
