DTH DTHR DR Remet Thread 4 1/2'' Water Well Drill Pipe

Name: DTH DTHR DR Remet Thread 4 12 Water Well Drill Pipe
Brand: ROSCHEN
Price: 1 USD

China DTH DTHR DR Remet Thread 4 1/2'' Water Well Drill Pipe wholesale

Brand Name : ROSCHEN

Model Number : 4 1/2 inch

Certification : ISO

Place of Origin : China

MOQ : Negotiable

Price : Negotiate

Supply Ability : 8000

Packaging Details : Bundle

Type : Water Well Drill Pipe

Machine type : Drilling Tool

Use : DTH DTHR DR

Material : Carbon Steel,Carbide

Thread : Remet Thread

Color : As picture

Contact Now

DTH DTHR DR Remet Thread 4 1/2'' Water Well Drill Pipe

Water Well Drill Pipe Features

Water Well Drill Pipe is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually.

Water Well Drill Pipe Application

Dimensional Stone Quarrying Industry
Underground Mining
Tunneling

Water Well Drill Pipe Parameters

REVERSE CIRCULATION DRILL ROD SPECIFICATIONS
Thread Type	Remet	Remet	Remet	Metzke	Metzke	Matrix	Matrix
Rod O.D.	3 1/2"	4"	4 1/2"	4"	4 1/2"	4"	4 1/2"
Outer Tube O.D.	88.9mm	101.7mm	114.3mm	101.7mm	114.3mm	101.7mm	114.3mm
Outer Tube I.D.	81.8mm	94.6mm	107.2mm	94.6mm	107.2mm	94.6mm	107.2mm
Outer Tube W.T.	5.3mm	7.1mm	7.1mm	7.1mm	7.1mm	7.1mm	7.1mm
Inner Tube O.D.	38.1mm	50.8mm	63.5mm	50.8mm	63.5mm	50.8mm	63.5mm
Inner Tube I.D.	32.6mm	45.3mm	58mm	45.3mm	58mm	45.3mm	58mm
Inner Tube W.T.	5.5mm	5.5mm	5.5mm	5.5mm	5.5mm	5.5mm	5.5mm
Spanner Flat	90mm	90mm	90mm	90mm	90mm	90mm	90mm
Weight 3.0m	75kg.	75kg.	95kg.	75kg.	95kg.	75kg.	95kg.
Weight 6.0m	120kg.	150kg.	168kg.	150kg.	168kg.	150kg.	168kg.

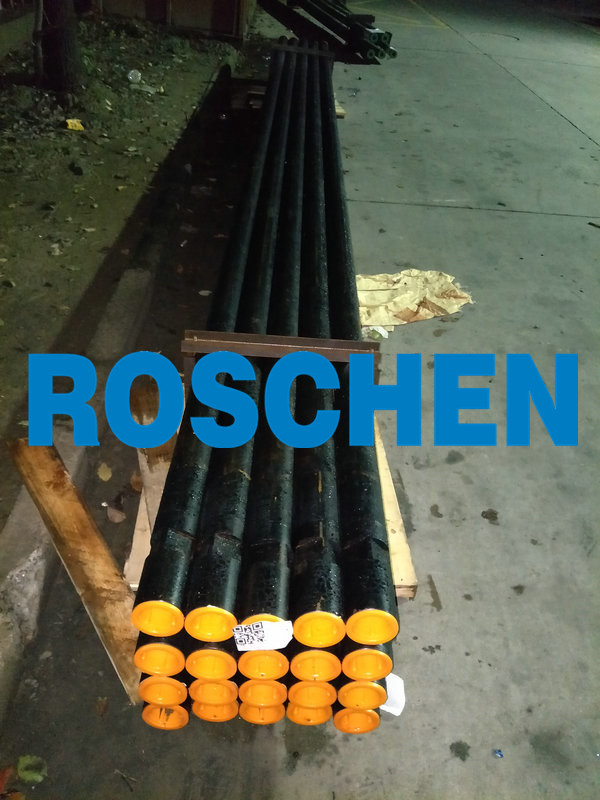

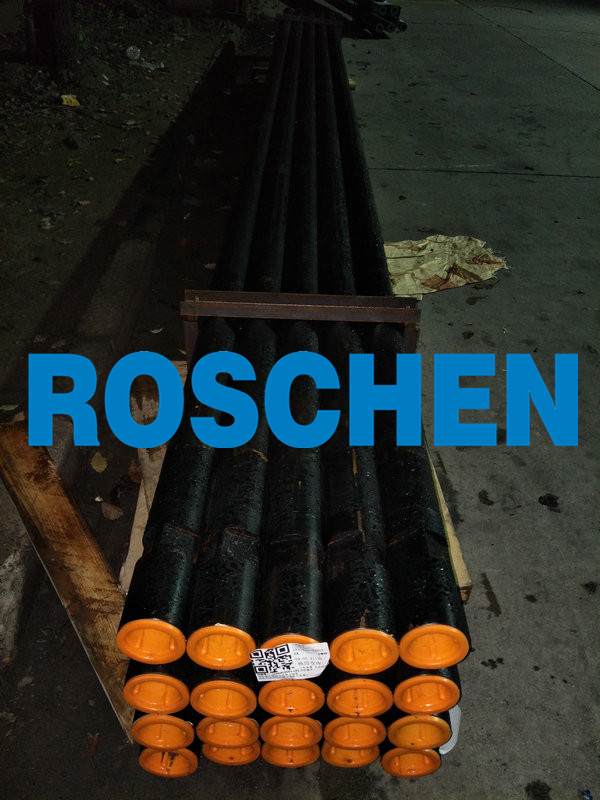

Water Well Drill Pipe Pictures

DTH DTHR DR Remet Thread 4 1/2'' Water Well Drill Pipe
