NQ3 HQ3 PQ3 Wireline Triple Tube Core Barrels for mineral exploration core drilling

Name: NQ3 HQ3 PQ3 Wireline Triple Tube Core Barrels for mineral exploration core drilling
Brand: ROSCHEN
Price: 1 USD

China NQ3 HQ3 PQ3 Wireline Triple Tube Core Barrels for mineral exploration core drilling wholesale

Brand Name : ROSCHEN

Model Number : BQ NQ HQ PQ NQ3 HQ3 PQ3

Certification : ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiate

Supply Ability : 100000000 set

Packaging Details : Wooden box

Hotsale : core barrels for sale

Mechanics : The mechanics of diamond core drilling

Core Barrel Size : MAZIER CORE BARREL 101

Type : Core Drilling Accessories

Series : China Mazier Core Barrel

China Core Barrel : China Mazier M101 Core Barrel

Use : triple tube core drilling

Item : Core Barrels and Core Diamond Drill Bits

Torque : 500 Nm

Item No : Mazier 101 Triple Tube core barrels

Metric : Bristish Metric Core Barrel

Factory Prices : rock core barrels factory prices

Model Name : Conventional Core Barrel Assemblies

Core Barrel Type : Triple tube core barrel

Style : Wireline Core Barrel

Contact Now

NQ3 HQ3 PQ3 Wireline Triple Tube Core Barrels for mineral exploration core drilling

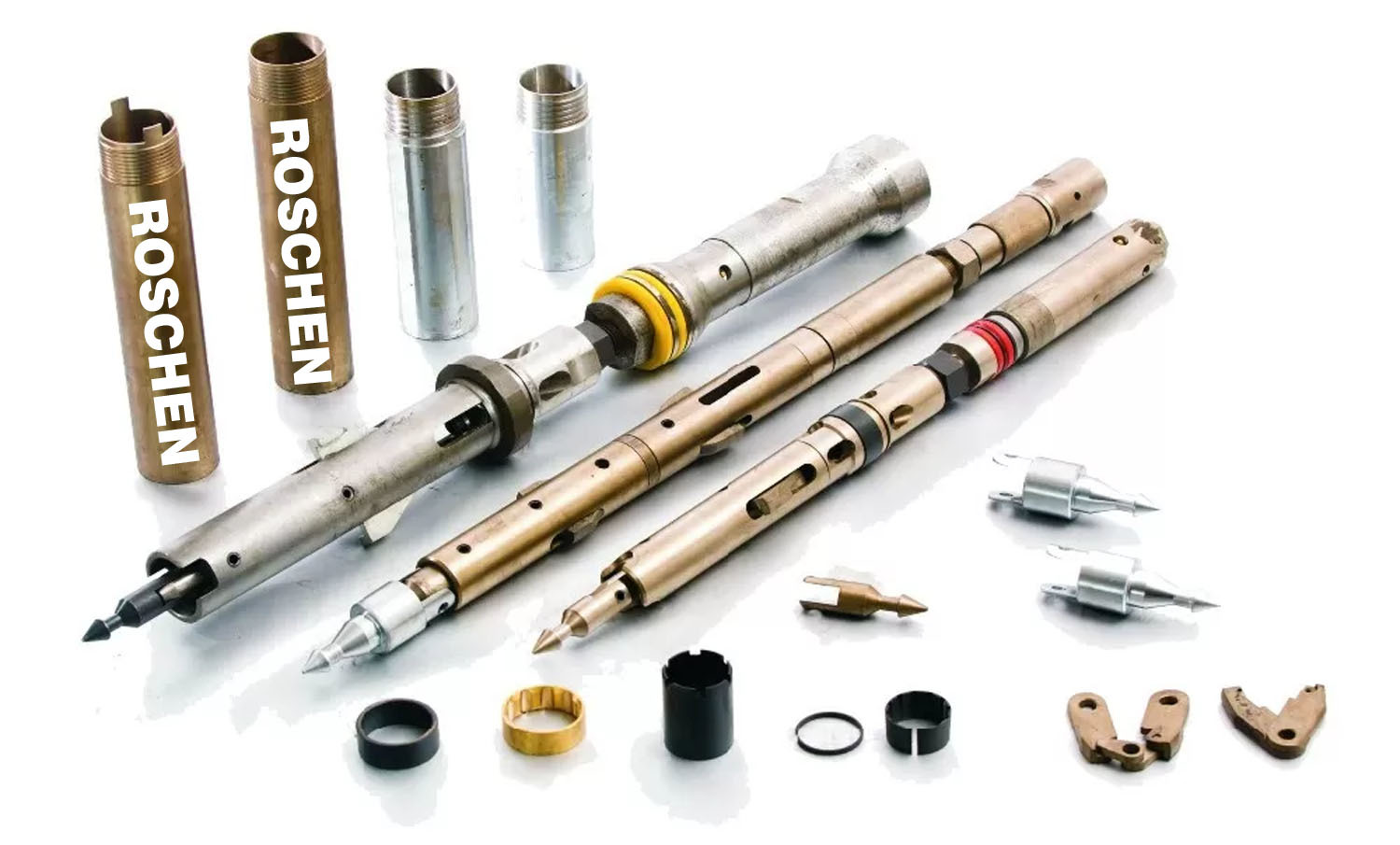

Wireline Triple Tube Core Barrels NQ3 HQ3 PQ3

NQ3 HQ3 PQ3 Wireline Triple Tube Core Barrels

Wireline triple tube core barrels are generally required in broken, fractured formations. They incorporate a third, split inner tube on base of wireline double tube core barrel. This can be pumped out of the inner tube after retrieval, allowing the core to be examined in its in-situ state.

Our head assembly features long life span, good compatibility with parts like inner tube and outer tube from other vendors, and availability in all spare parts.

All with ISO certificate & quality control.

Product profile: Wireline Triple Tube Core Barrels

Wireline Triple Tube Core barrel specifications
Size	Hole (mm)	Core (mm)	Head Thread
NQ3	75.2	45	NQ3 Rod box
HQ3	95.6	61	HQ3 Rod box
PQ3	122	83	PQ3 Rod box

Notes:
1. Core Bit and Reaming Shell are not supplied with the core barrel, and shall be ordered separately.
2.1.5m and 3 0m length core barrels are available.

NQ3 HQ3 PQ3 Wireline Triple Tube Core Barrels for mineral exploration core drilling
